EATON FD3125J01 SERIES C MOLDED CASE CIRCUIT BREAKER 3 POLE 125 AMP 600V 35KAIC

EATON FD3125J01 MOLDED CASE CIRCUIT BREAKER 3 POLE 125 AMP 600V 35KAIC SERIES C

3-Pole • 125 Amp • 600 VAC / 250 VDC • F-Frame • Series C

Condition

NEW OPEN BOX

New open-box item with original factory packaging.

Product Details

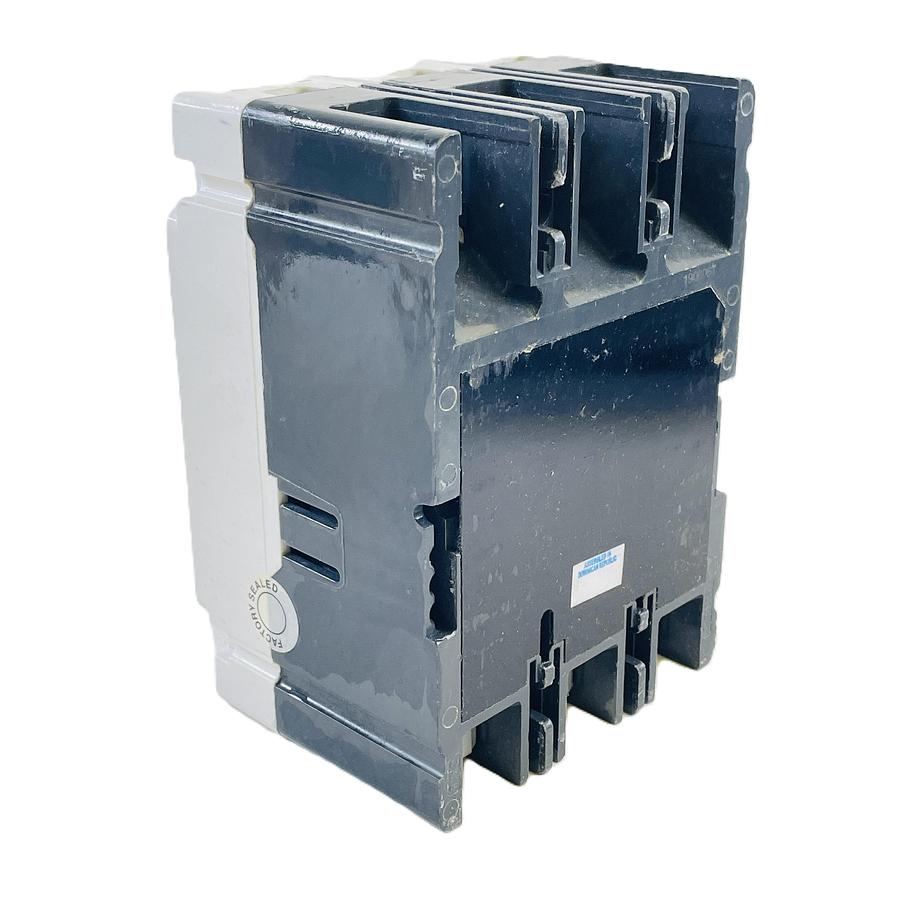

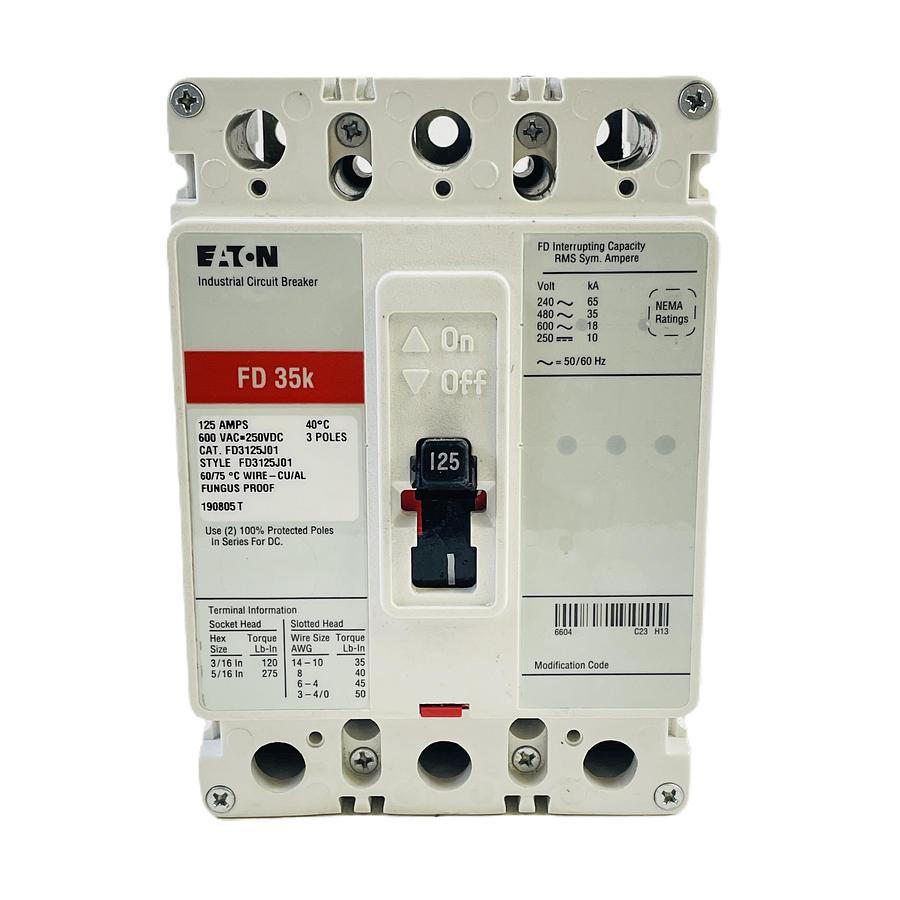

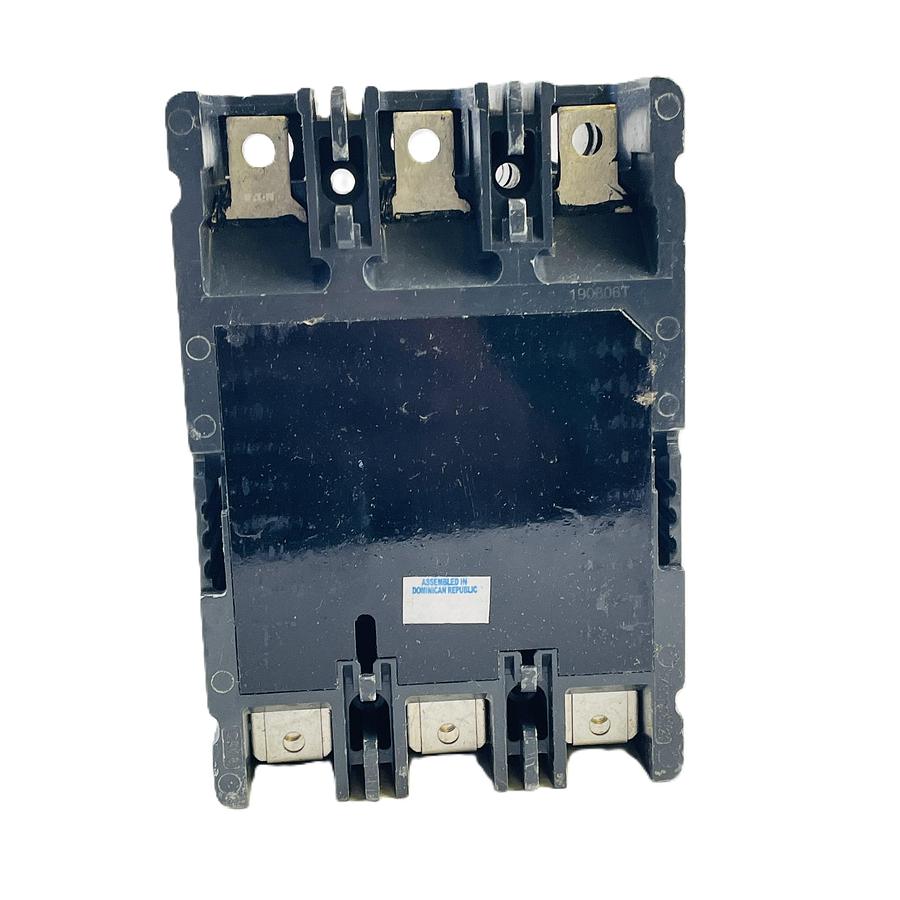

This listing is for an Eaton Series C FD3125J01 molded case circuit breaker featuring a 3-pole configuration and a 125-amp current rating. Designed for compatible electrical distribution applications, this F-Frame circuit breaker is rated for 600 VAC / 250 VDC.

The breaker features a non-interchangeable thermal-magnetic trip unit and fungus-proof treatment. Its interrupting capacity varies according to system voltage. Please verify the breaker ratings, terminal requirements, and compatibility with your electrical equipment before purchasing.

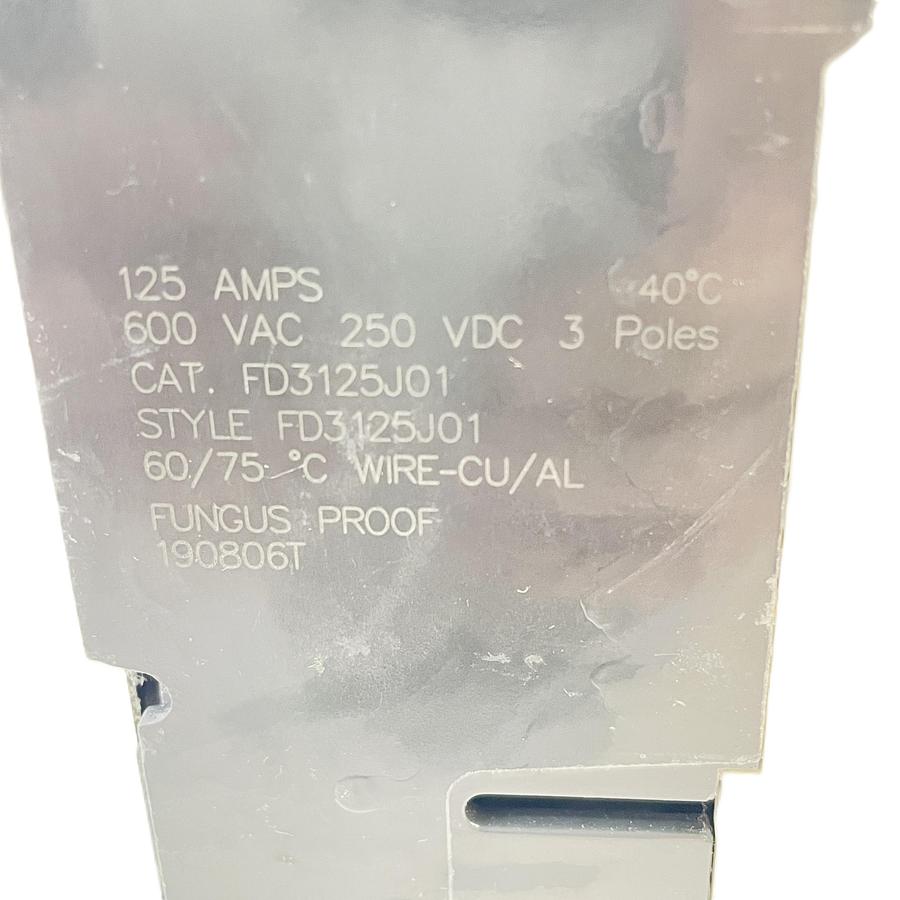

Product Information

• Manufacturer: Eaton
• Model / Catalog Number: FD3125J01
• Product Series: Series C
• Frame Type: F-Frame (FD 35k)
• Product Type: Molded Case Circuit Breaker
• Number of Poles: 3
• Current Rating: 125 Amps
• Voltage Rating: 600 VAC / 250 VDC
• Interrupting Capacity (AIC): 35,000 A at 480 VAC / 65,000 A at 240 VAC / 18,000 A at 600 VAC / 10,000 A at 250 VDC
• Trip Unit Type: Non-interchangeable thermal-magnetic
• Additional Feature: Fungus-proof treated
• Terminal Wire Rating: 60/75°C Cu/Al wire, #14–#3/0 AWG range support
• UPC: 782113491004

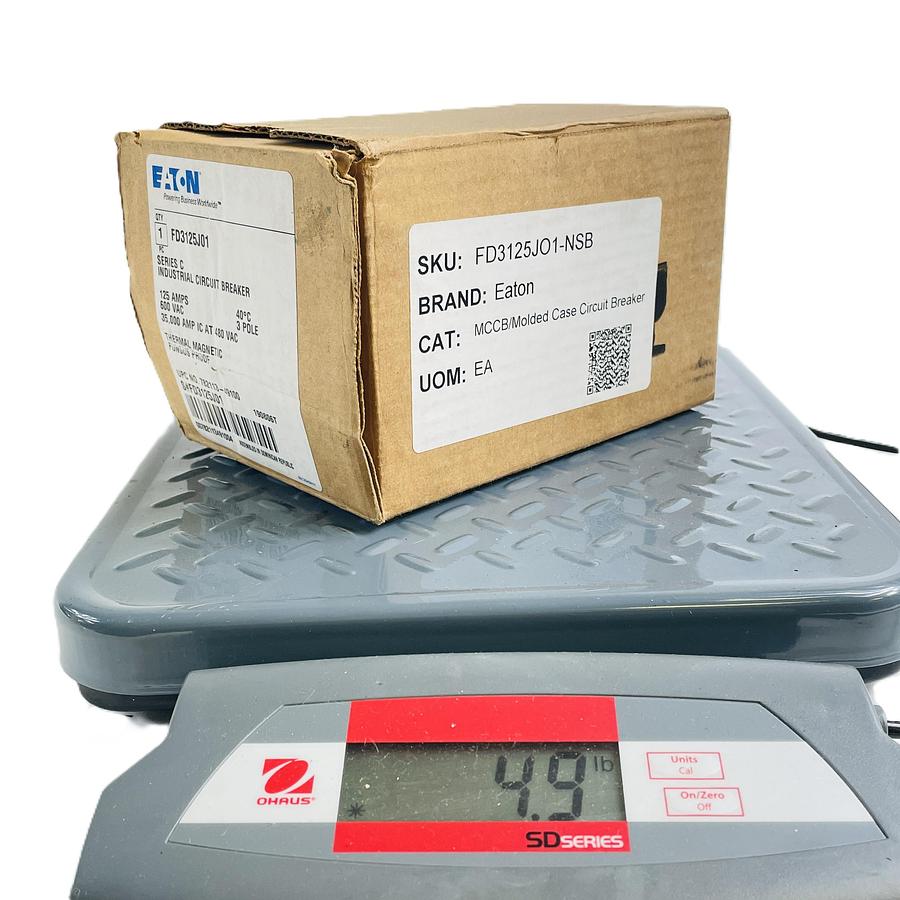

• Weight: 4.9 lbs
• Approvals: UL Listed, CSA Certified
• Country of Origin: Dominican Republic

Included

• Eaton FD3125J01 molded case circuit breaker

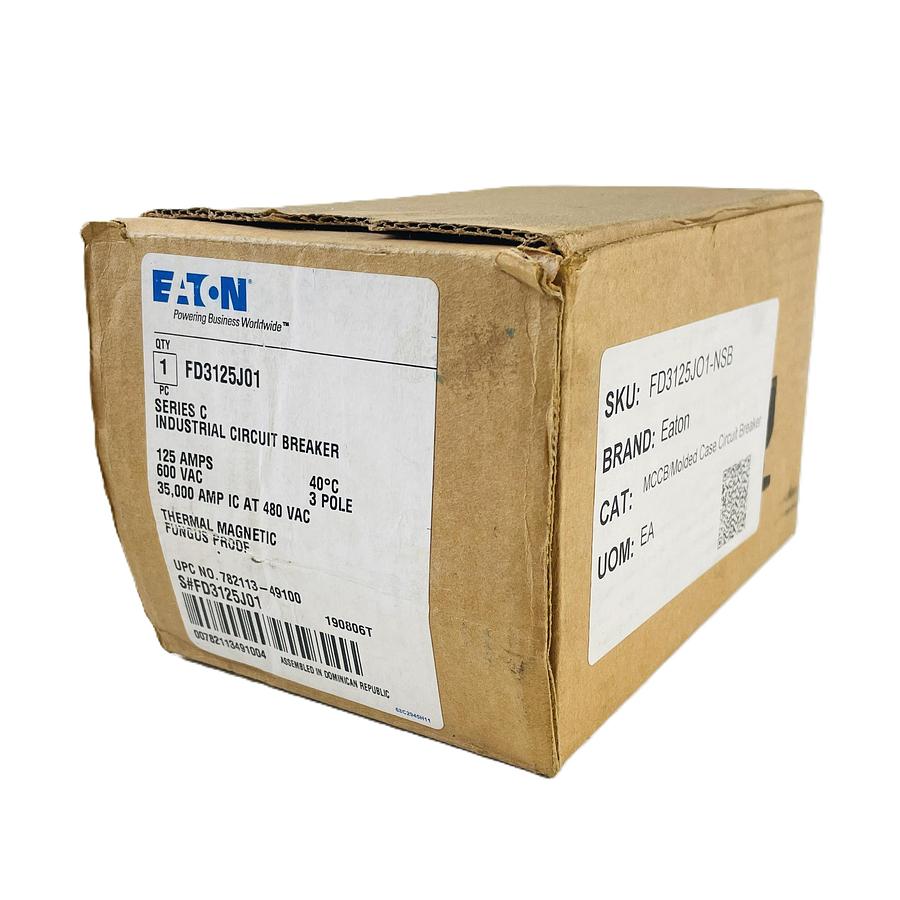

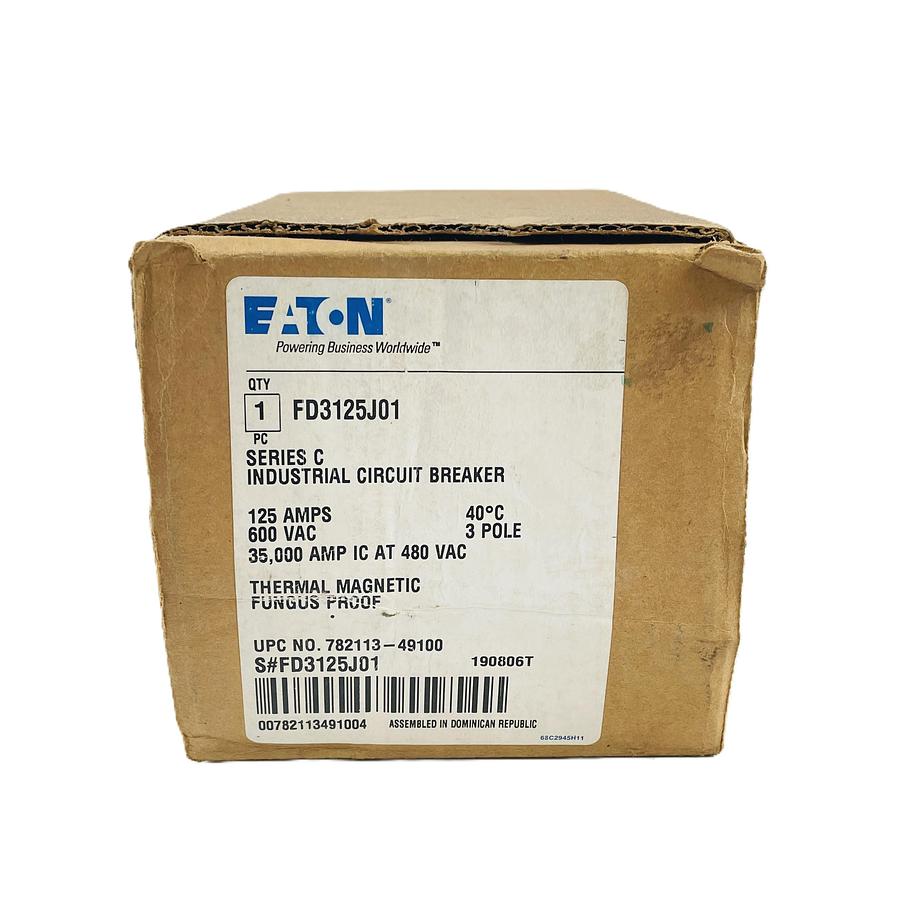

• Original factory packaging

Only the items listed above and shown in the listing photos are included. Please review all photos carefully to confirm the item's condition and included components.

Please Note

Electrical equipment must be selected and installed by qualified personnel in accordance with applicable electrical codes and manufacturer requirements. Verify compatibility with your panel, bus configuration, voltage, trip characteristics, terminal requirements, and available fault current before installation.

Specifications are provided for product identification and reference. Please confirm the ratings and markings on the actual item before use.
