EATON DIL A-XHICV22 AUXILIARY CONTACT BLOCK 2 NO 2 NC SPRING TERMINALS

EATON DIL A-XHICV22 AUXILIARY CONTACT BLOCK 2 NO 2 NC SPRING TERMINALS

4-Pole | 2 NO + 2 NC | Spring-Cage Terminals | A600 / P300

Condition

SELLER REFURBISHED, FULLY FUNCTIONAL, EXCELLENT CONDITION

Product Details

This listing is for an Eaton Moeller DIL A-XHICV22 front-mount auxiliary contact block, also identified by catalog number XTCEXFCLCC22 / 276532. It features a four-pole contact configuration with two normally open (NO) and two normally closed (NC) contacts, including early-make and late-break contact functions.

Equipped with spring-cage tension-clamp terminals for secure wiring, this auxiliary contact block is designed for front snap-on mounting to compatible Eaton DILA control relays and DILM7 through DILM38 power contactors. It carries an A600/P300 pilot-duty rating and was manufactured in Romania.

Product Information

• Manufacturer: Eaton / Moeller
• Model: DIL A-XHICV22
• Catalog Numbers: XTCEXFCLCC22 / 276532
• Product Type: Front-Mount Auxiliary Contact Block
• Contact Configuration: 4-Pole, 2 NO + 2 NC
• Contact Functions: 2 Early-Make (EM / NO) and 2 Late-Break (LB / NC)

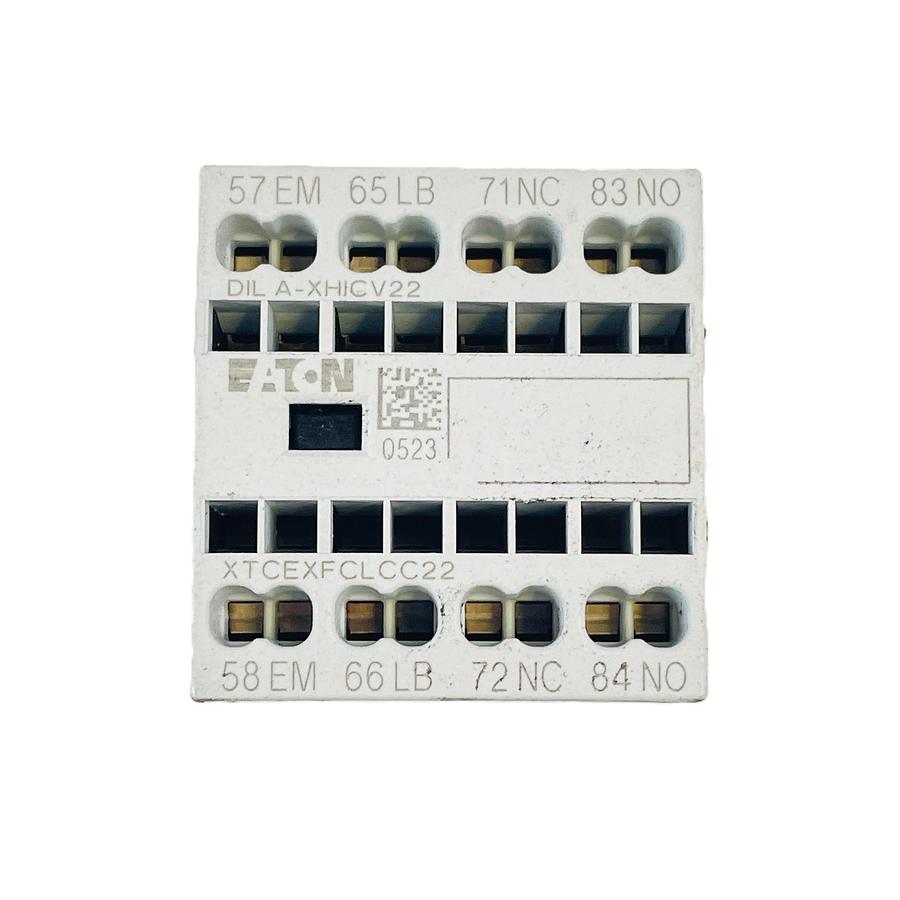

• Contact Markings: 57-58 EM, 65-66 LB, 71-72 NC, 83-84 NO
• Terminal Type: Spring-Cage / Tension-Clamp Terminals

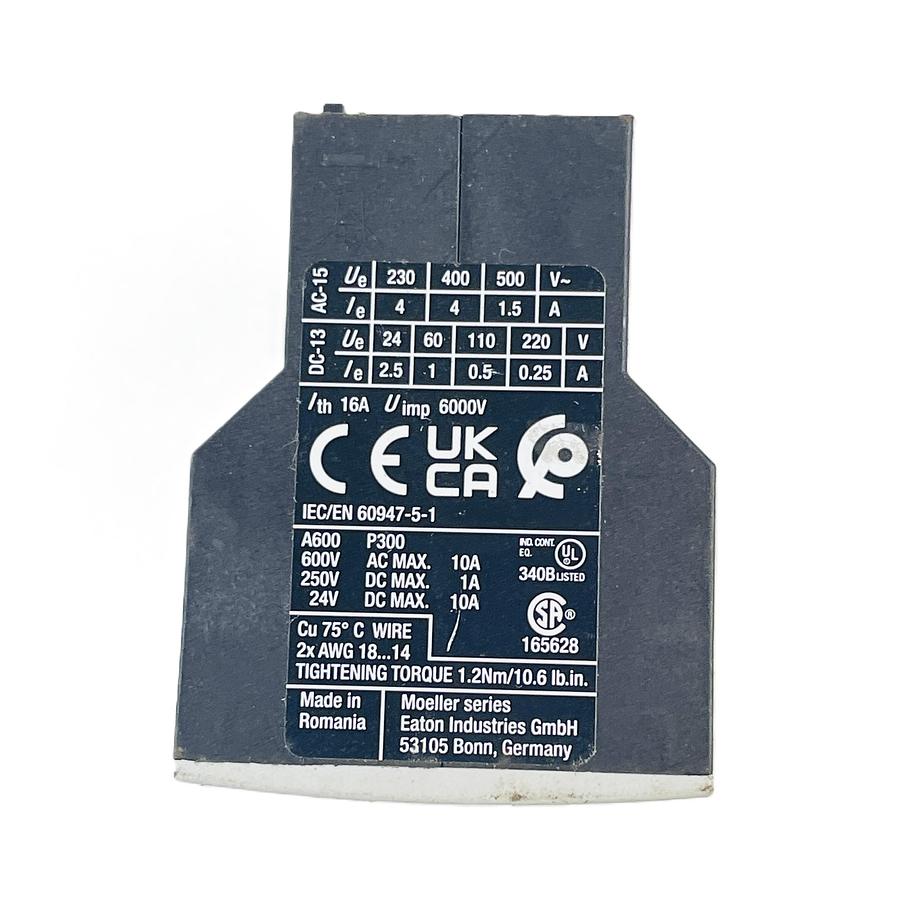

• Thermal Current (Ith): 16A
• Voltage / Pilot-Duty Rating: A600 / P300; up to 600V AC and 250V DC
• Impulse Withstand Voltage (Uimp): 6000V
• Compatible Equipment: Eaton DILA Control Relays and DILM7–DILM38 Power Contactors
• Wire Range: 2 x AWG 18–14 copper, 75°C
• Standards & Approvals: IEC/EN 60947-5-1, UL Listed (340B), CSA Certified, CE, UKCA
• Country of Origin: Romania

Included

One Eaton DIL A-XHICV22 auxiliary contact block, as described.

Please Note

Please verify the model and catalog numbers, contact configuration, terminal type, and contactor compatibility before purchasing. Confirm the wiring diagram and contact timing requirements for your specific application before installation.
