PHOENIX CONTACT UKK 3 DOUBLE LEVEL TERMINAL BLOCKS LOT OF 19 24A 500V

PHOENIX CONTACT UKK 3 DOUBLE LEVEL TERMINAL BLOCKS LOT OF 19 24A 500V

Lot of 19 • 24A / 500V IEC • Double-Level • Screw Clamp • DIN Rail Mount

Condition

SELLER REFURBISHED, FULLY FUNCTIONAL, EXCELLENT CONDITION

Product Details

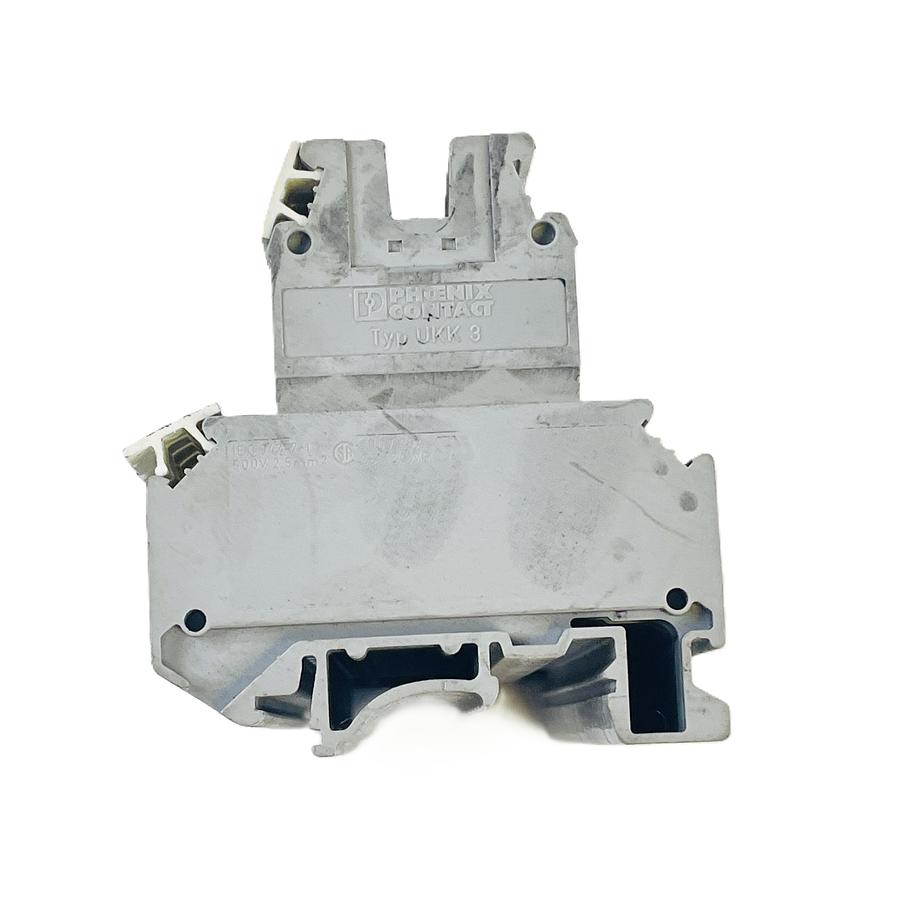

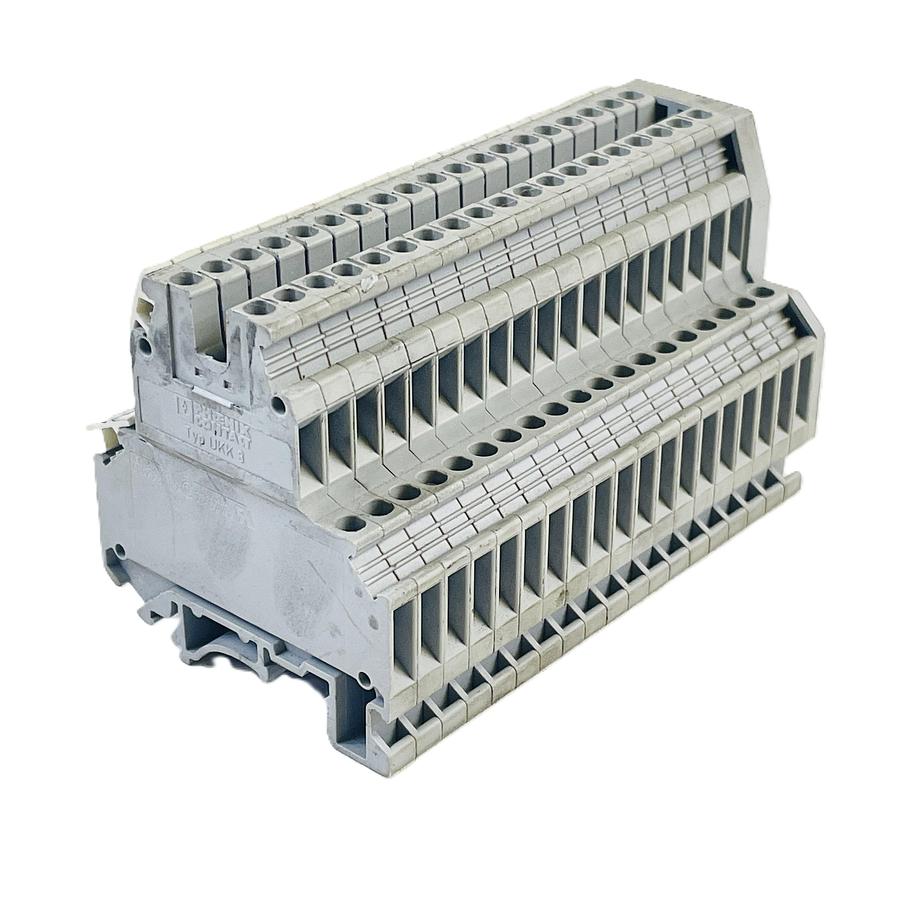

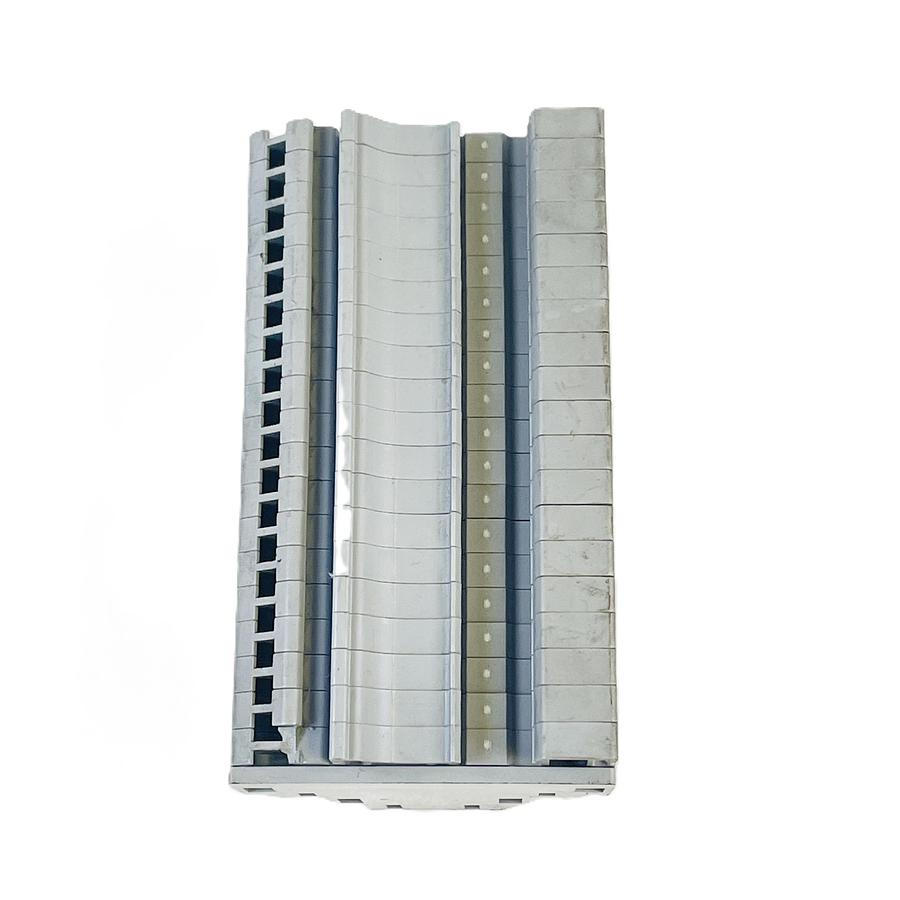

This listing is for a lot of 19 Phoenix Contact UKK 3 double-level terminal blocks, part number 2770016, mounted together. Each terminal block features a two-tier design with screw-clamp connections, providing a compact solution for high-density industrial control panel wiring. Pre-printed marker strips are present on the upper and lower levels.

These terminal blocks are rated for 24A at 500V under IEC specifications and 15A at 600V under UL/CSA specifications. They accommodate compatible conductors from #24 to #12 AWG and are designed for installation on compatible NS 35 or NS 32 DIN rails.

Product Information

• Manufacturer: Phoenix Contact
• Model / Part Number: UKK 3 / 2770016
• Quantity: Lot of 19 Connected Terminal Blocks
• Product Type: Double-Level Feed-Through Terminal Block
• Connection Method: M3 Screw Connection
• Number of Levels: 2 — Upper and Lower
• Connections per Block: 4
• Current Rating: 24A IEC / 15A UL/CSA
• Voltage Rating: 500V IEC / 600V UL/CSA
• Wire Range: #24 to #12 AWG (0.2–2.5 mm²)
• Housing Material: Polyamide (PA), Gray
• Mounting Style: NS 35/7.5, NS 35/15, or NS 32 DIN Rail

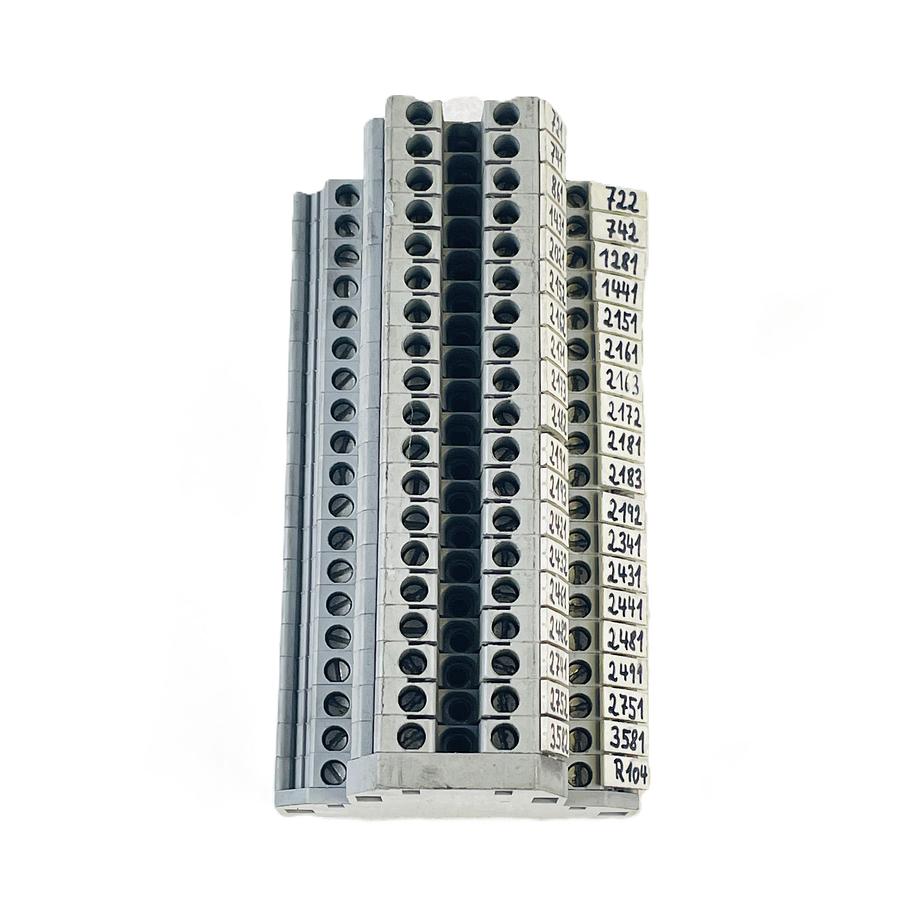

• Marking: Pre-Printed Marker Strips on Upper and Lower Levels

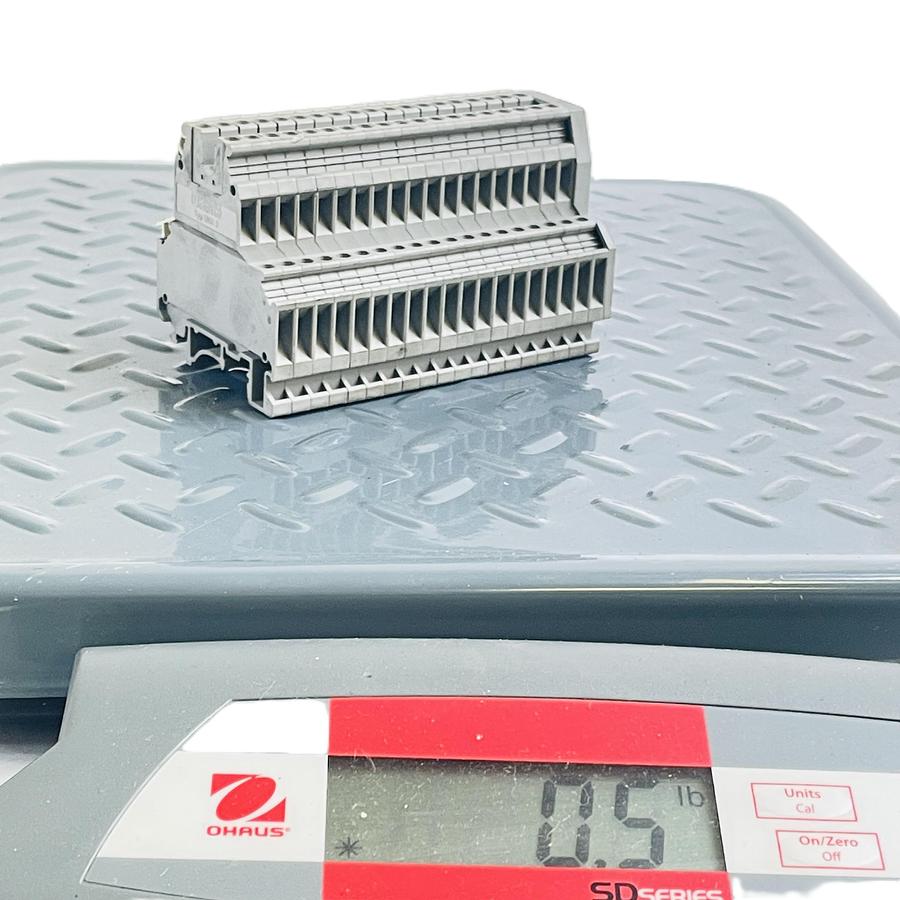

• Total Combined Weight: 0.5 lbs
• Approvals: UL Recognized, CSA Certified, CE, IEC 60947-7-1
• Condition: Seller Refurbished, Fully Functional

Included

One lot of 19 Phoenix Contact UKK 3 double-level terminal blocks, mounted together as shown.

Only the items and accessories shown in the listing photos are included.

Please Note

Please verify the part number, conductor size, electrical ratings, and DIN rail compatibility before purchasing. Confirm suitability for your specific application and applicable electrical requirements.
