EWC CONTROLS ULTRAZONE 18X12ND RECTANGULAR MOTORIZED ZONE DAMPER 18" X 12" 24V

EWC CONTROLS ULTRAZONE 18X12ND RECTANGULAR MOTORIZED ZONE DAMPER 18" X 12" 24V

18" x 12" Rectangular Damper | 24VAC | MA-ND5 Motor Actuator

Condition

SELLER REFURBISHED, FULLY FUNCTIONAL, EXCELLENT CONDITION

Product Details

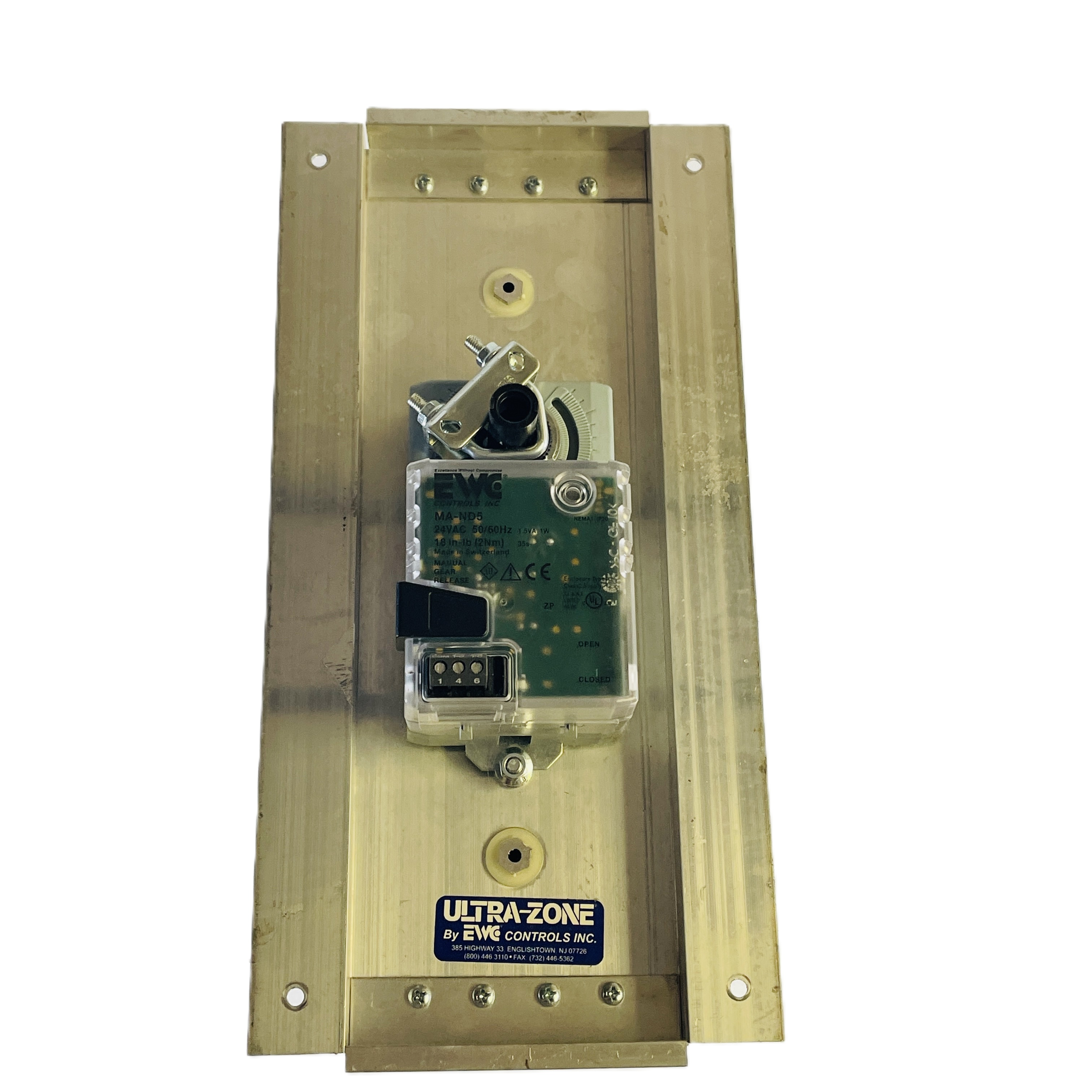

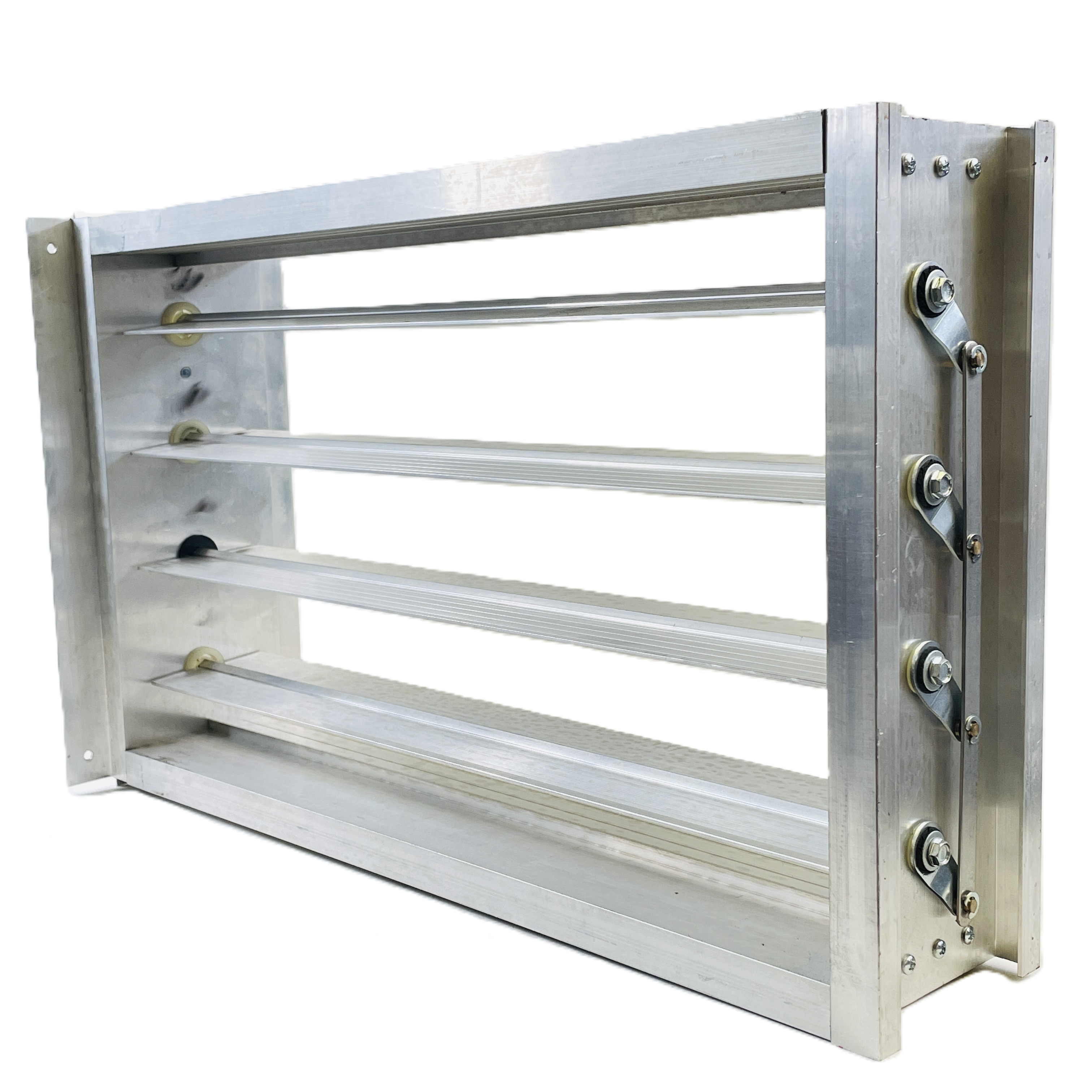

This listing is for an EWC Controls Ultra-Zone ND Series rectangular motorized HVAC zone damper, model 18X12ND. The damper measures 18" wide x 12" high and features a heavy-duty extruded aluminum frame with a multi-blade assembly.

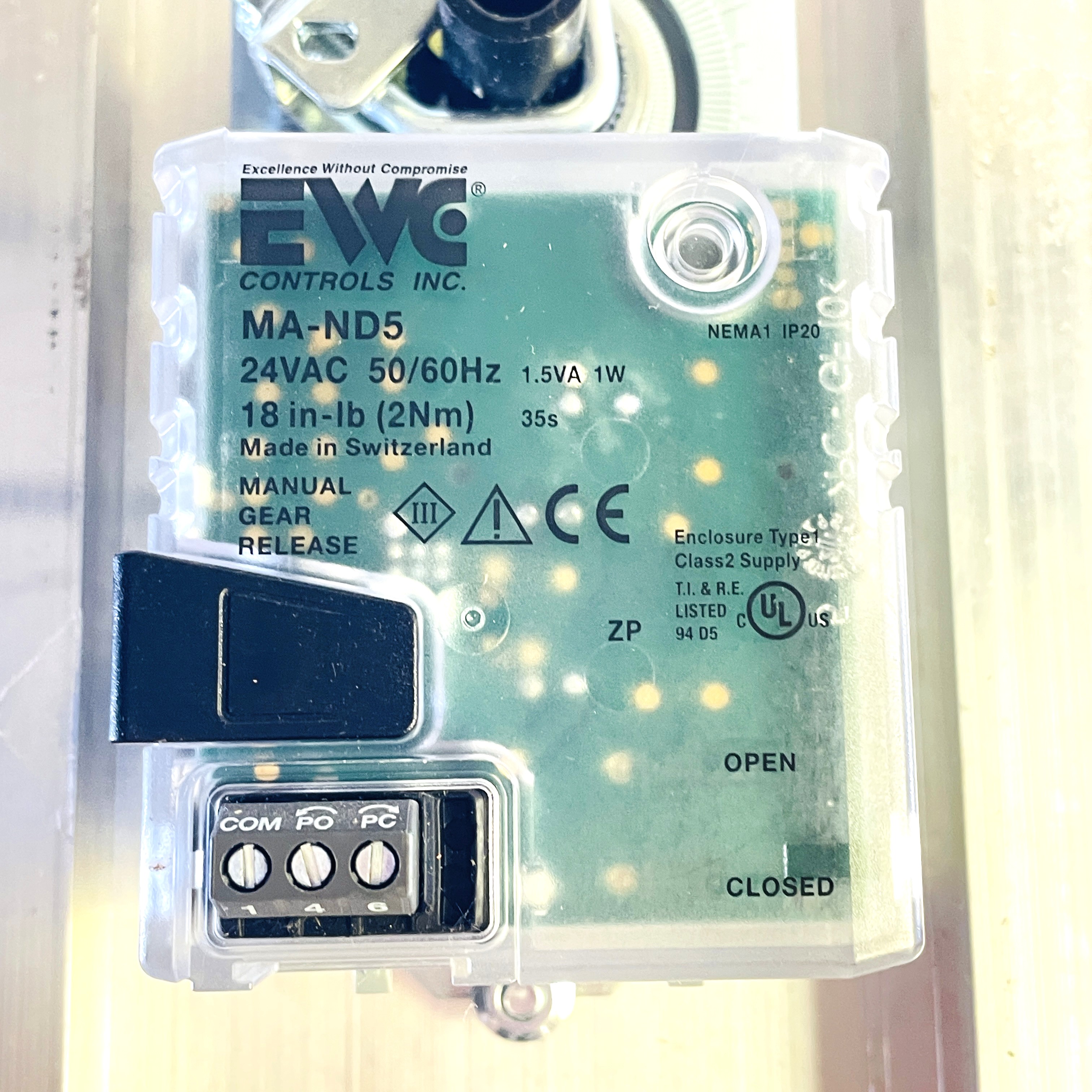

Equipped with an EWC MA-ND5 motor actuator rated for 24VAC, 50/60Hz, this unit provides 18 in-lb (2 Nm) of torque and a 35-second rotation time. A manual gear release switch allows for manual adjustment during installation and setup.

Product Information

• Manufacturer: EWC Controls
• Product Line: Ultra-Zone ND Series
• Model / Part Number: 18X12ND
• Actuator Model: MA-ND5
• Component Type: Rectangular Motorized HVAC Zone Damper
• Damper Dimensions: 18" Wide x 12" High
• Voltage Rating: 24VAC, 50/60Hz
• Power Consumption: 1.5VA / 1W
• Torque Rating: 18 in-lb (2 Nm)
• Actuation Time: 35 seconds
• Frame Material: Heavy-Duty Extruded Aluminum
• Actuator Country of Origin: Switzerland
• Approvals / Ratings: cULus Listed, CE, NEMA 1 (IP20)

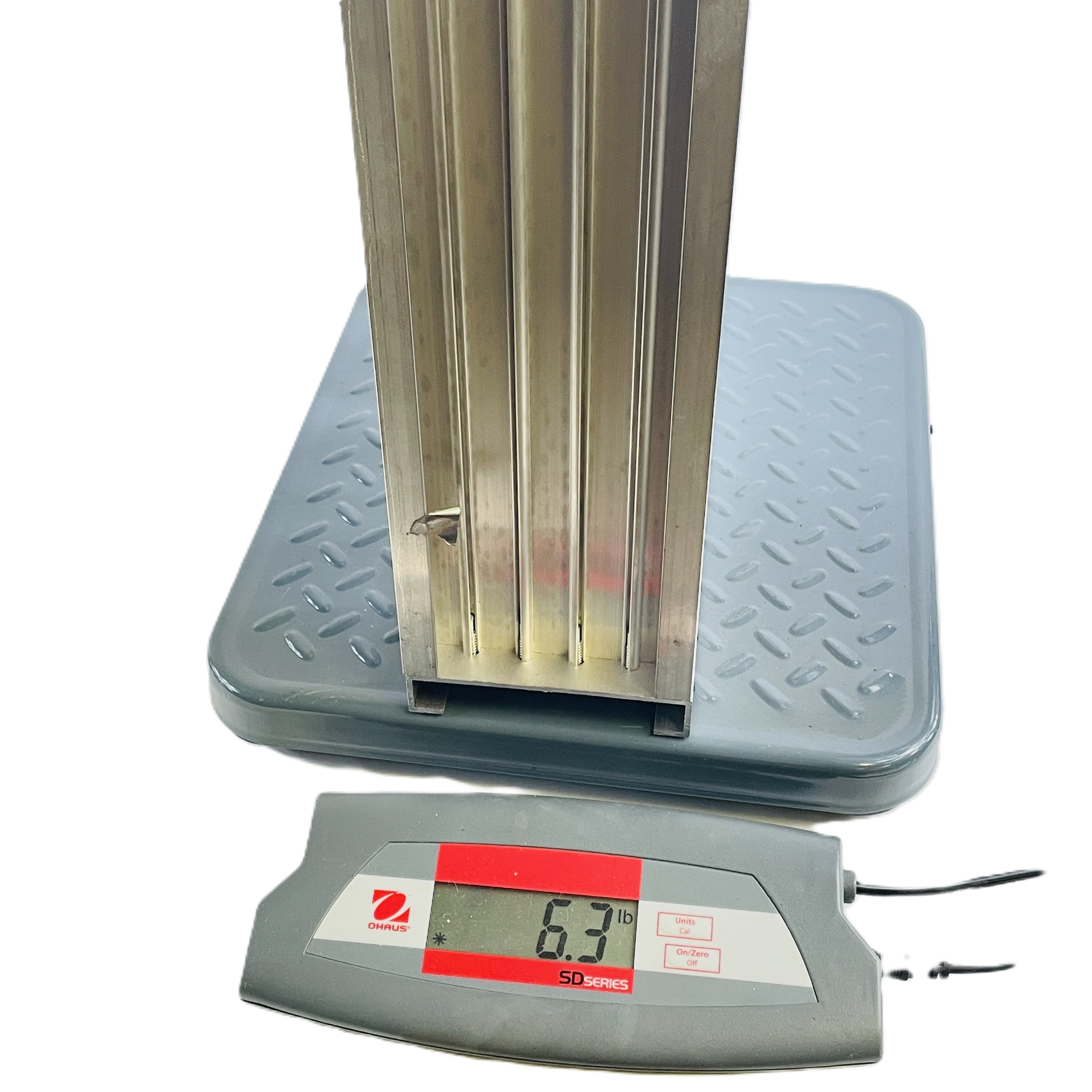

• Weight: 6.3 lb

Included

One EWC Controls Ultra-Zone 18X12ND rectangular motorized zone damper with attached MA-ND5 actuator, as shown in the photos.

Please Note

Please verify the damper dimensions, actuator voltage, wiring requirements, and control system compatibility before purchasing. Confirm that the 18" x 12" size and 24VAC actuator specifications are suitable for your HVAC application.
